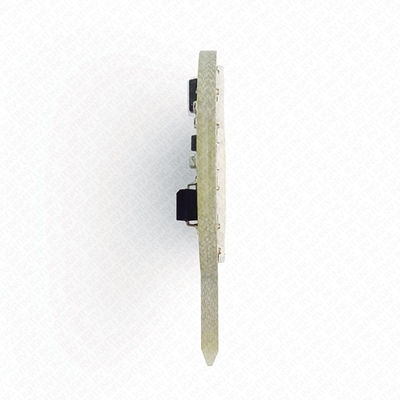

Dimmable LED Bulb, With Miniature Wedge Connector (T10) On The Side | 36 LEDs

This Eco-LED® replacement bulb can fit applications where 900 series bulbs are used, such as ceiling lights, wall fixtures and other types decorative lights. This LED bulb has 36 SMD 3014 LEDs with an output of up to 202 lumens (details in the Specifications tab). LEDs are mounted to one side of the round PCB for direct 120° illumination.

Miniature wedge (T10) base for easy plug-and-play installation.

The energy-efficient bulb for 12V DC operation uses only 2 watts of power and is designed to last 50,000 hours—42 times longer than incandescents. Available in cold (6000-6500K) and warm white (3000-3200K).

DIMMABLE WITH OUR WIRELESS WALL SWITCH!
Uses the Pulse-Width Modulation technology (PWM) in order to allow the use our popular Wireless Wall Switch! It procures flicker-free dimming in 12V lighting systems and can also be used to replace regular LED bulbs having a miniature wedge (T10) connector in case of interference on radio or television.

Voltage	DC12V
Total Watts (W)	2 W
Total Lumen (Lm)	WG4-PWM-CW36 (CW): 192-202 Lm WG4-PWM-WW36 (WW): 180-195 Lm
Consumption (A)	0.155 mA
Base/Connector Position	Side
Dimming	PWM
Replacement for	Incandescent
Replaces (part #)	901, 904, 906, 912, 915, 916, 917, 918, 920, 921, 922, 923.
LED Type	SMD 3014
LED Quantity	36

PWM - Pulse Width Modulation
Pulse Width Modulation refers to the concept of rapidly pulsing a digital signal on a wire. Along with many other uses, it can be used to simulate a varying static voltage. PWM is commonly used for driving motors, heaters, LEDs or lights in varying intensities or speeds.
